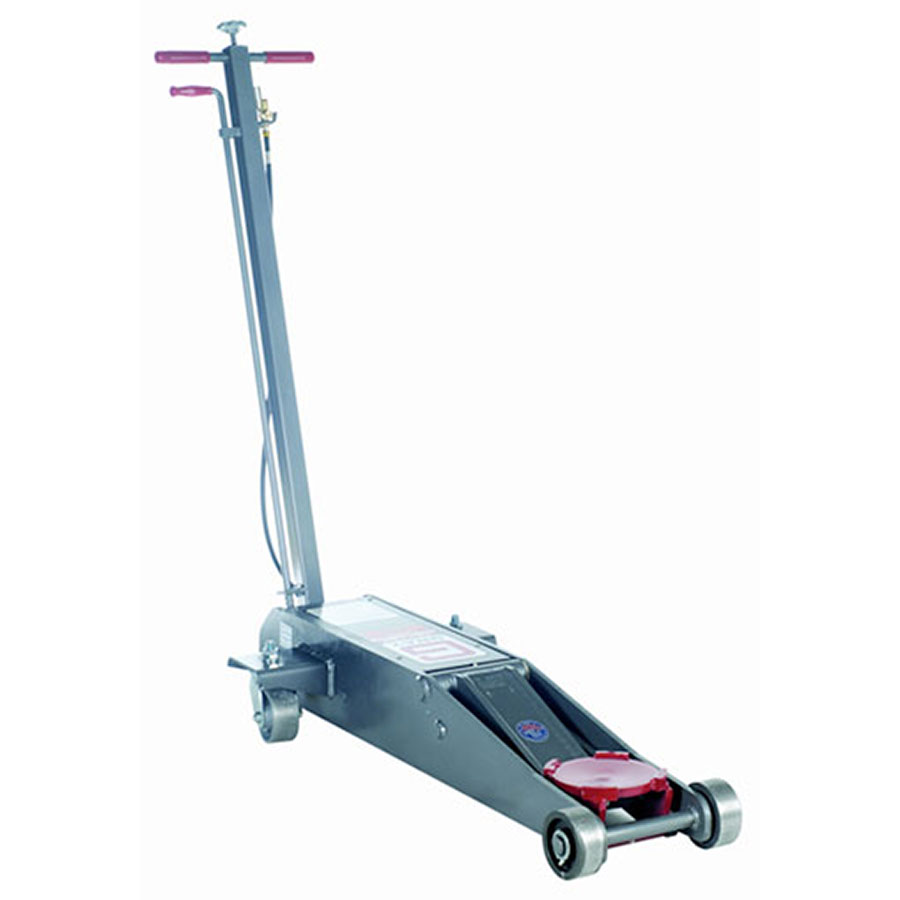

The FSJ-120 floor service jack sets the standard for floor jacks. The FSJ-120 has a 12,000 lbs. capacity and provides the user with the reliability and quality needed to keep their operation going.
The FSJ-120 features a low start height, providing the user with the flexibility to accommodate a variety of vehicles. The heavy duty floor jack has an American-designed and manufactured steel frame that stands up to the harshest shop environments. The FSJ-120 is air operated for ease of use, but includes a manual pump feature for versatility. The large front wheels and long-life commercial duty rear swivel casters allow easy portability and durability.
Specifications
| FSJ-120 | US Units | Metric |
|---|---|---|
| Maximum Capacity | 12,000 lbs | 5,443.11 kg |
| Minimum Start Height | 4 ¾” | 12.07 cm |
| Maximum Lift Height | 23 ¼” | 59.06 cm |
| Power | Air/Hydraulic/Manual | Air/Hydraulic/Manual |
| Required Air Pressure | 90-175 PSI | 6.2-12 Bar |
| Chassis Height | 9 ¾” | 24.77 cm |
| Chassis Length | 48” | 121.92 cm |
| Handle Length | 47 ¾” | 121.29 cm |
| Overall width | 18 ½” | 46.99 cm |
| Overall Length | 95 ¼” | 241.94 cm |
| Overall Reach | 87” | 220.98 cm |
| Front Caster Diameter | 4 1/3” | 11.01 cm |
| Rear Swivel Caster Diameter | 4” | 10.16 cm |
| Saddle Diameter | 7 3/8” | 18.73 cm |
| Front Width Caster to Caster | 16 7/8” | 42.86 cm |
| Rear Width Bracket to Bracket | 19 7/8” | 50.48 cm |
| Shipping Weight | 256 lbs | 116.12 kg |
