Gray Manufacturing USA ASBJ-2000 Agricultural Sprayer Air Bottle Jack, 10 Ton
Gray Manufacturing USA ASBJ-2000 Agricultural Sprayer Air Bottle Jack, 10 Ton
Order No. GRM-ASBJ-2000

List Price: $3,275.00
Price: $2,412.80
Availability: In Stock
All Gray Qualifies for Free Shipping!

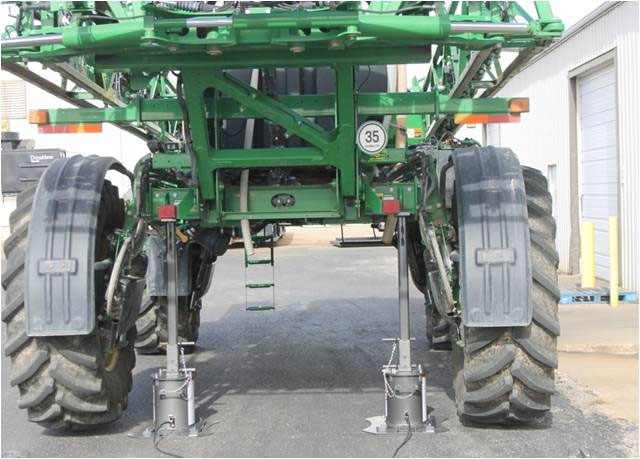

The ASBJ-2000 agricultural sprayer bottle jack is the perfect solution for spring, tire and brake work on agricultural sprayers.

The ABSJ-2000 can be used individually or in pairs to double the lifting capacity. The 100% air operated jack provides years of maintenance free use and doubles as a support stand. The ASBJ-2000's removable handle and wheels makes the air jack easy to place and store.

  • Removable handle makes it easy to move and store the air jack
  • Built-in vehicle support stand feature
  • Multiple width saddle options
  • Thin walled cylinders manufactured by Gray Manufacturing in the U.S.A.

Specifications

ASBJ-2000US Units
Capacity20,000 lbs
Minimum Start Height49 5/8"
Maximum Lift Height66 5/8"
Saddle Width6 1/4"
Wide Saddle Width9 7/8"
Pin Increments2 1/2"
Required Air Pressure200 PSI
Stroke9 5/8"
Width25 7/8"
Length27 1/2"

  • Weight:  120.00 lbs
