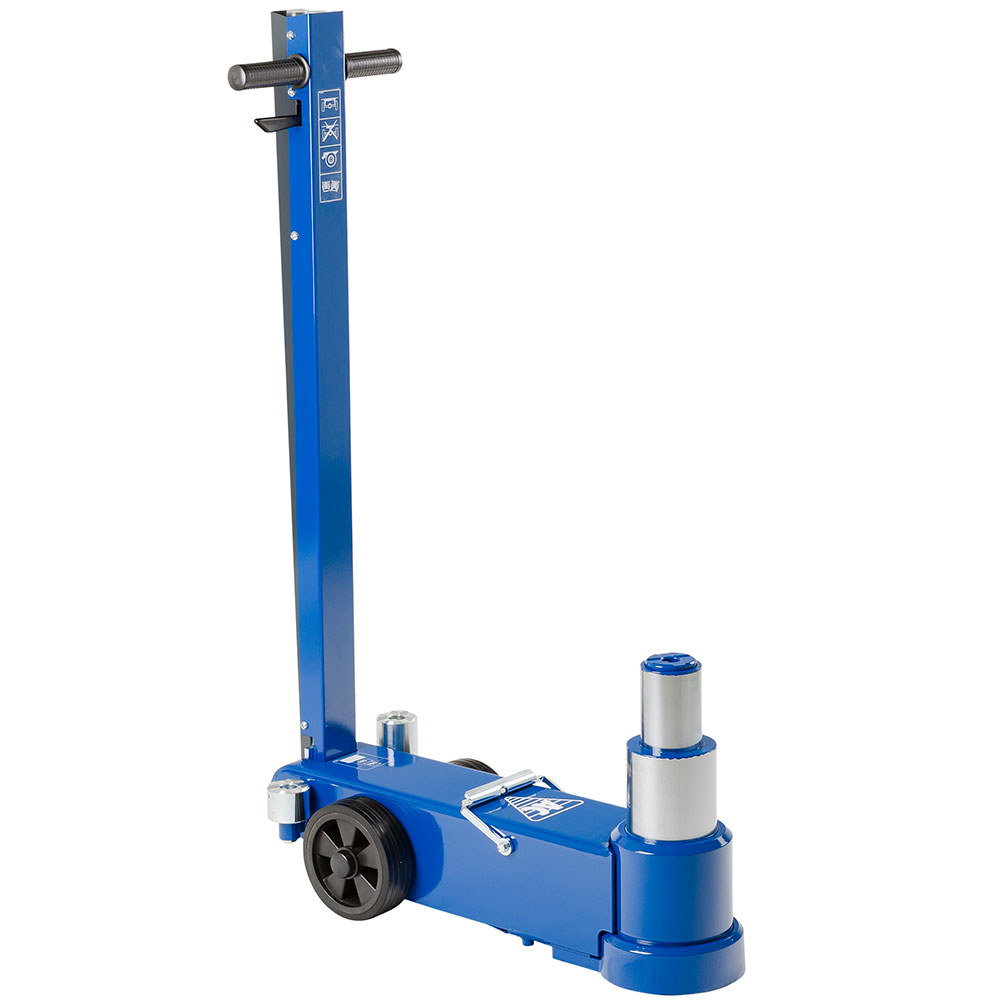

AC Hydraulic Inc. 50-2 2-Stage Air Hydraulic Jack for Heavy Duty Vehicles like Buses and Trucks, 110,000 Lb Capacity
AC Hydraulic Inc. 50-2 2-Stage Air Hydraulic Jack for Heavy Duty Vehicles like Buses and Trucks, 110,000 Lb Capacity
Order No. ACH-50-2
List Price: $3,635.00
Price: $2,908.00
Availability: In Stock

  • Minimum height of 8.70 in.
  • Designed for heavy-duty, intensive commercial use
  • Hard chromium plated rams for long life
  • Built-in overload valve and dead man’s release for optimum safety whilst lifting and lowering
  • Ergonomic handle with push buttons
  • Extend the maximum lifting height with an additional 1.97 or 3.94 in.
  • Included Accessories: Extension - F250; Jack saddle - FW; V-saddle - FW1-90; V-saddle - FW1-130; Extension - F50; Extension - F100
  • 10 year warranty on frame, chassis, and steel structures; 3 year warranty on the hydraulic system (pump and cylinder)
  • ISO 9001 certified

Specifications

50-2US Units
Capacity110,000 lbs
Minimum Start Height8.70″
Maximum Lift Height17.60″
PowerAir/Hydraulic
Frame Length31.97″
Handle Length45.67″
Width7.95″
Width with Wheels12.32″
Air Supply130-145 psi
Air Consumption12.40 cfm
Weight176 lbs
Item Number4520000

  • Weight:  176.00 lbs
