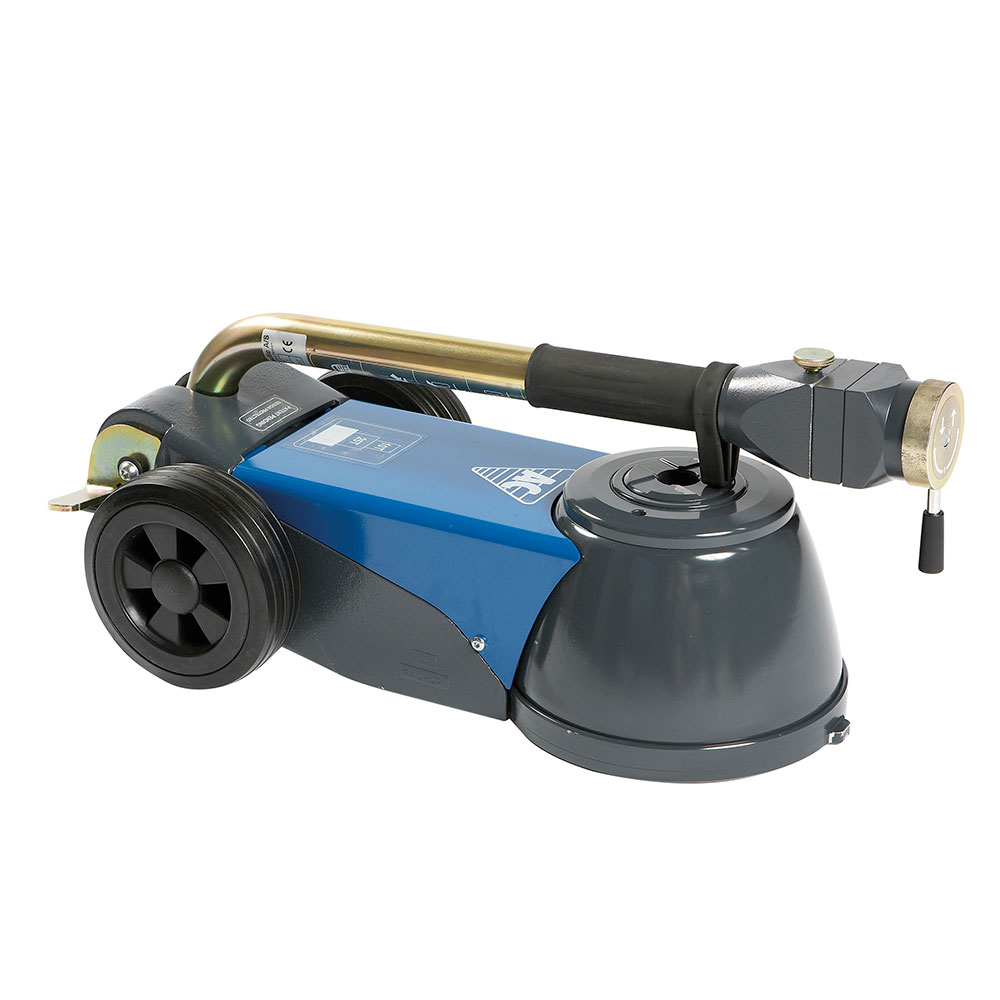

AC Hydraulic Inc. B25-2 Portable Air Hydraulic Jack Ideal for Service Vans Etc, 55,000 Lb Capacity
AC Hydraulic Inc. B25-2 Portable Air Hydraulic Jack Ideal for Service Vans Etc, 55,000 Lb Capacity
Order No. ACH-B25-2

List Price: $2,726.00
Price: $2,180.80
Availability: In Stock

  • Low minimum height of only 6.30 in. and low weight of only 60 lbs.
  • Extend lifting height with 2 extenders (1.97 / 3.94 in.)
  • Handy design with no loose tubes, handles or valves
  • Hard chromium plated piston rod for long life
  • Transport locking device / wall bracket for both van and workshop (Option)
  • Built-in overload valve and dead man’s release for optimum safety whilst lifting and lowering
  • Light and handy: A portable design and weight of just 61 Lbs
  • Easy to operate: Single handle for both carrying, lifting, lowering and manoeuvring
  • Included Accessories: Transport locking device and wall bracket - SBB; Extension - F250; Jack saddle - FW; V-saddle - FW1-90; V-saddle - FW1-130; Extension - F50; Extension - F100
  • 10 year warranty on frame, chassis, and steel structures; 3 year warranty on the hydraulic system (pump and cylinder)
  • ISO 9001 certified

Specifications

B25-2US Units
Capacity55,000 lbs
Minimum Start Height6.30″
Maximum Lift Height12.60″
PowerAir/Hydraulic
Frame Length21.02″
Handle Length21.65″
Width8.86″
Width with Wheels11.50″
Air Supply130-174 psi
Air Consumption12.40 cfm
Weight60 lbs
Item Number4480000

  • Weight:  60.00 lbs
